When it comes to managing heat, a good Heatpipe Heatsink really makes all the difference in keeping things running smoothly across different industries. As technology keeps evolving, the need for smarter, more efficient cooling solutions just keeps growing. You've probably heard experts like Dr. Emily Rodriguez—she’s a real authority in thermal tech—talk about how crucial these heatsinks are. She points out that Heatpipe Heatsinks are super effective because they use phase change principles to get rid of heat more efficiently.
In this article, I want to share the top 10 Heatpipe Heatsink options out there right now. We’ll take a look at what makes each one special—things like their design, the materials they’re made from, and how well they actually perform when it comes to cooling. Whether you're working on consumer gadgets, cars, or industrial gear, these heatsinks show they can keep your stuff at just the right temperature, which means your devices last longer and work more reliably.
All in all, it’s really important to get familiar with the different Heatpipe Heatsinks out there if you’re into designing products or managing heat. Staying up-to-date with the latest tech means you can pick the right solution for your needs—and that can make a big difference in how successful your project turns out.
Understanding Heatpipe Technology in Thermal Management Solutions
Heatpipe technology has emerged as a critical component in the realm of Thermal Management solutions, offering efficient ways to dissipate heat from various electronic components. At its core, a heatpipe consists of a sealed, vacuum-tight container filled with a working fluid. When one end of the heatpipe is heated, the fluid evaporates and travels to the cooler end, where it condenses back into a liquid. This phase change process effectively transfers heat, enabling rapid thermal conduction while maintaining a streamlined design that is both space-efficient and lightweight.
The versatility of heatpipes makes them suitable for a variety of applications, ranging from consumer electronics to high-performance computing systems. By optimizing the configuration and material selection, engineers can tailor heatpipe solutions to manage different thermal loads and challenges. The ability to operate without moving parts not only enhances reliability but also reduces environmental impact, making heatpipe-based designs increasingly popular in sustainable technologies. As the demand for improved thermal management solutions grows, heatpipe technology continues to evolve, paving the way for innovative applications that prioritize performance and efficiency.
Top 10 Heatpipe Heatsink Solutions for Optimal Thermal Management
| Solution | Material | Thermal Conductivity (W/m·K) | Max Operating Temperature (°C) | Weight (g) |
| Heatpipe A | Copper | 390 | 150 | 250 |
| Heatpipe B | Aluminum | 235 | 180 | 300 |
| Heatpipe C | Copper | 400 | 160 | 270 |
| Heatpipe D | Nickel | 120 | 200 | 350 |
| Heatpipe E | Copper | 390 | 170 | 280 |
| Heatpipe F | Aluminum | 250 | 190 | 320 |
| Heatpipe G | Copper | 400 | 175 | 290 |
| Heatpipe H | Nickel | 130 | 185 | 360 |
| Heatpipe I | Copper | 390 | 155 | 250 |
| Heatpipe J | Aluminum | 240 | 200 | 310 |
Key Advantages of Using Heatpipe Heatsinks for Effective Cooling
Heatpipe heatsinkshave emerged as a favored choice for thermal management due to their unique design and efficiency in heat dissipation. One of the key advantages lies in their exceptional thermal conductivity, which allows them to transfer heat away from critical components rapidly. This enhanced performance is achieved through the evaporation and condensation of a working fluid within the heatpipe, enabling efficient Heat Transfer over relatively long distances. As a result,heatpipe heatsinks can maintain lower temperatures, which is crucial for the longevity and reliability of electronic devices.
Another significant benefit of utilizing heatpipe heatsinks is their space-saving design. Unlike traditional heatsinks that may require large surface areas to dissipate heat effectively, heatpipe solutions can be compact while still providing superior cooling performance. This characteristic makes them ideal for high-density applications, such as in computers and telecommunications, where space can be at a premium. Furthermore, heatpipe heatsinks are often lightweight and require minimal maintenance, making them practical for a wide range of applications without the added burden of complex installation or upkeep.
Criteria for Selecting the Best Heatpipe Heatsink for Your Needs
When selecting the best heatpipe heatsink for your thermal management needs, there are several critical criteria to consider. First, assess the thermal conductivity of the materials used in the heatsink design. High thermal conductivity ensures efficient heat transfer from the source to the surrounding environment, which is vital for maintaining optimal operating temperatures. Moreover, the design's surface area plays a significant role; a larger surface area typically allows for better heat dissipation, enabling the system to operate more reliably under high loads.
Another important factor is the weight and size of the heatsink. Depending on the application, such as compact electronic devices or larger industrial equipment, the heatsink should fit appropriately without compromising structural integrity or causing an imbalance. Ease of installation and compatibility with existing hardware are equally important—ensuring that the heatsink can be easily integrated into the system. Additionally, consider the airflow patterns around the heatsink. Proper orientation and design can enhance cooling effectiveness, allowing for optimal heat exchange with minimal resistance. By thoroughly evaluating these aspects, you can choose a heatpipe heatsink that meets your thermal management requirements and enhances the overall performance of your systems.
Top 10 Heatpipe Heatsink Solutions for Optimal Thermal Management
This chart illustrates the thermal conductivity of various heatpipe heatsink solutions. Thermal conductivity is a crucial factor in selecting an optimal heatsink for effective thermal management in electronic applications.
Top Features to Look for in an Optimal Heatpipe Heatsink Design
When selecting an optimal heatpipe heatsink design, several key features should be prioritized to ensure effective thermal management. First and foremost, the thermal conductivity of the materials used in the construction of the heatsink is critical. High thermal conductivity materials, such as copper, excel in transferring heat away from critical components. According to a recent industry report, heatsinks made from copper can achieve thermal conductivity ratings as high as 400 W/mK, significantly outperforming aluminum counterparts. Additionally, the design's efficiency can be enhanced through the incorporation of microfin structures, which increase the surface area and improve heat dissipation.
In terms of design, the size and orientation of the heatpipe play a pivotal role in the overall performance of the heatsink. Heatpipes should be configured to optimize gravity assist, as this affects the capillary action crucial for the heat transfer process. Studies indicate that a properly oriented heatsink can improve thermal performance by up to 30% compared to poorly designed alternatives. Furthermore, the choice of working fluid within the heatpipe is vital; fluids with lower boiling points can vaporize and condense more rapidly, enhancing thermal transfer rates.
Tips: When evaluating heatsink designs, consider conducting a thermal analysis using simulations to predict performance under various operational conditions. Regularly examine the heatsink for dust and debris, as these can impair airflow and reduce cooling efficacy. Opting for modular designs may also facilitate upgrades and modifications as technology evolves.
Comparative Analysis of Leading Heatpipe Heatsink Brands and Models
The thermal management market has seen significant advancements, particularly in heatpipe heatsink solutions, which excel in efficiently dissipating heat from high-performance components. A comparative analysis reveals that leading models exhibit thermal resistance values as low as 0.1 °C/W, providing superior performance for CPUs and GPUs compared to traditional heatsinks. According to a report by the Thermal Management Industry Association, the adoption of heatpipe technology has increased by 25% over the past three years, indicating a growing preference for this solution among manufacturers.
When evaluating heatpipe heatsinks, it's crucial to consider the material and design. Copper heatpipes, for example, typically offer better thermal conductivity than aluminum, resulting in lower operating temperatures. Additionally, various designs, such as U-shaped or flattened pipes, can enhance the overall heat transfer efficiency. Studies indicate that a well-optimized design can improve cooling performance by up to 30%, making it essential for engineers to choose wisely based on their specific cooling needs.
Tips:
- Always assess the thermal resistance specifications when selecting a heatsink, as lower values indicate more efficient heat dissipation.
- Consider the size and airflow patterns within your system; a larger heatsink may provide better performance, but only if there's adequate airflow to facilitate effective heat exchange.
- Regular maintenance, such as dust cleaning, can significantly improve the longevity and efficiency of your thermal management solution, ensuring optimal performance throughout its lifespan.
Best Practices for Installing and Maintaining Heatpipe Heatsinks

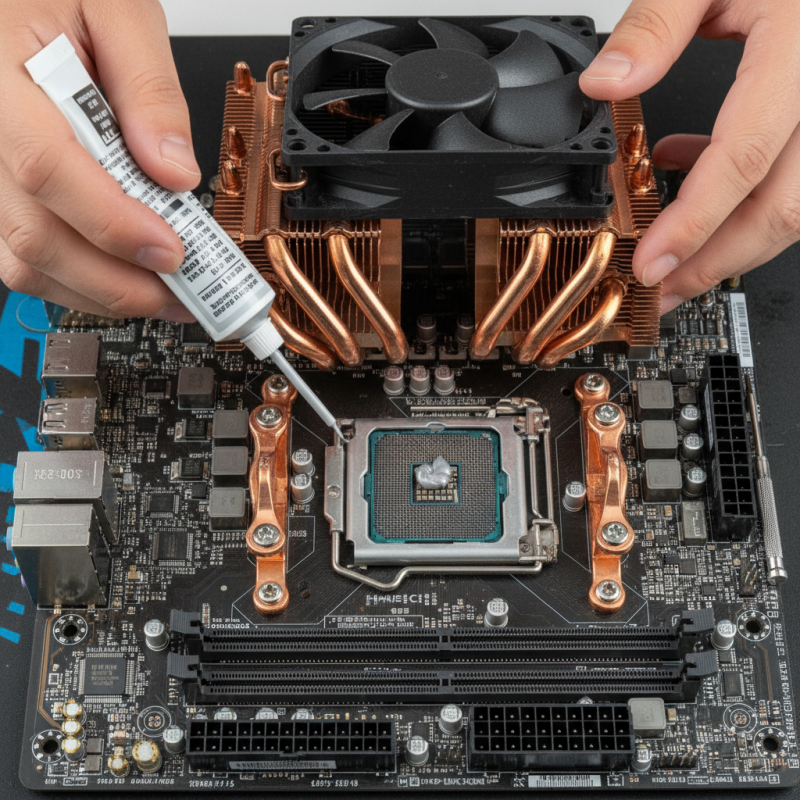

When it comes to installing and maintaining heatpipe heatsinks, attention to detail is essential for ensuring optimal thermal performance. First, ensure that the heatsink is properly seated on the heat-generating component, typically a CPU or GPU. This involves applying a high-quality thermal interface material (TIM) evenly to facilitate efficient heat transfer. Using the right amount of TIM is crucial; too much can cause excess thermal resistance, while too little may result in inadequate coverage. Additionally, ensure that the heatsink is securely fastened to prevent thermal cycles from loosening the connection over time.
Regular maintenance is key to prolonging the lifespan and efficiency of heatpipe heatsinks. Dust and debris can accumulate on the fins, obstructing airflow and diminishing cooling performance. Implement a routine cleaning schedule to carefully remove any accumulated particles, using a soft brush or compressed air to avoid damaging the delicate fins. It’s also important to monitor the thermal performance regularly, as any significant increase in temperature can indicate potential issues that need addressing, such as a failing heatpipe or a degradation in the thermal interface material. By following these best practices, users can ensure that their heatpipe heatsinks operate effectively and prolong the performance of their thermal management systems.
Future Trends in Heatpipe Heatsink Technology and Innovations
The future of heatpipe heatsink technology is poised for transformative innovations, driven by the relentless demand for efficient thermal management solutions across various industries. One notable trend is the integration of advanced materials such as graphene and carbon nanotubes, which promise enhanced thermal conductivity and lighter-weight designs. These materials enable the development of heatpipes that can dissipate heat more effectively while occupying less space, addressing the growing miniaturization of electronic devices.
Additionally, the advancement of manufacturing techniques, including additive manufacturing (3D printing), is revolutionizing how heatsinks are designed and produced. This allows for greater design flexibility, enabling the creation of complex geometries that optimize airflow and thermal performance. As industries evolve, the incorporation of IoT-enabled sensors and smart technology in heatpipe systems will further enhance thermal management by providing real-time monitoring and automated adjustments to ensure optimal functioning under varying conditions. These innovations collectively aim to not only improve efficiency but also reduce the environmental impact of thermal management solutions, paving the way for a more sustainable future.
FAQS
: Heatpipe technology involves a sealed container filled with a working fluid that dissipates heat through a phase change process. When one end is heated, the fluid evaporates and travels to the cooler end, where it condenses back into a liquid, effectively transferring heat.
Heatpipes offer efficient heat dissipation, operate without moving parts for enhanced reliability, and are lightweight and space-efficient, making them suitable for a wide range of applications from consumer electronics to high-performance computing.
Key factors to consider include the thermal conductivity of materials, surface area for heat dissipation, weight and size suitability for the application, ease of installation, and airflow patterns for optimal cooling effectiveness.
High thermal conductivity ensures efficient heat transfer from the heat source to the environment, which is essential for maintaining optimal operating temperatures and preventing overheating.
A larger heatsink surface area typically allows for better heat dissipation. However, the size must be balanced with adequate airflow to ensure effective heat exchange and avoid performance issues.
Proper airflow patterns help enhance cooling effectiveness. A well-designed heatsink that considers airflow orientation can significantly improve heat exchange with minimal resistance.
Regular maintenance, such as cleaning dust from heatsinks and checking for blockages, can significantly enhance the longevity and efficiency of thermal management systems.
Copper and aluminum are common materials, with copper generally offering better thermal conductivity and lower operating temperatures compared to aluminum.
Advancements have led to models with thermal resistance values as low as 0.1 °C/W, enhancing their performance compared to traditional heatsinks and increasing their adoption in the market.
Conclusion
Heatpipe heatsinks are a crucial component in thermal management solutions, offering advanced cooling capabilities through innovative heat transfer technology. Understanding the principles of heatpipe technology is essential for selecting the right heatsink, as these systems utilize the efficient transfer of heat via vaporization and condensation within the sealed pipes. The advantages of using heatpipe heatsinks include superior thermal conductivity, compact design, and reliability in high-performance applications.
When choosing the best heatpipe heatsink, it's vital to consider various criteria such as thermal performance, material quality, and form factor. Top features to seek include high surface area for effective heat dissipation and durability under operating conditions. Furthermore, a comparative analysis of leading models sheds light on unique characteristics, guiding users in making informed decisions. Best practices for installation and maintenance are also crucial to ensuring longevity and efficiency. As technology advances, the future of heatpipe heatsink solutions promises further innovations to enhance thermal management in various applications.
