Choosing the right Heat Pipe for your project isn’t always a walk in the park, but getting it right really makes a difference. These little guys are pretty amazing at moving heat around and keeping your systems running smoothly. Still, figuring out which one to pick can feel pretty overwhelming, right? There are tons of things to consider—like how well it performs thermally, its size, and where you'll actually use it.
For example, a top-notch heat pipe that works wonders in aerospace might be way overkill—or just not suitable—for something like a smartphone or a laptop. Getting what fits best isn’t always obvious, and that’s where knowing the details really counts. Companies like Thermal Solutions, Inc. have been around the block—they’ve got tons of expertise and can give you some solid advice. Their experience really shows how important it is to match the right heat pipe specs with what you need.
Honestly, picking the right heat pipe isn’t always straightforward. Sometimes, you run into surprises with efficiency or design quirks. That’s why it’s a good idea to chat with folks who know their stuff—they can help you navigate the tricky stuff. When you make an informed choice, you’ll see better performance and reliability in your system. Trust me, it’s worth taking the time to get it just right.
Understanding Heat Pipes: Basics and Operating Principles
Heat pipes are essential in various applications for efficient thermal management. Understanding their basic operating principles is crucial. A heat pipe consists of a sealed vessel filled with a working fluid. This fluid vaporizes at the hot side, transferring heat and condensing on the cooler side. This cycle allows for effective Heat Transfer with minimal temperature differences.
According to a recent industry report by Global Market Insights, the heat pipe market is expected to reach over $3 billion by 2027, reflecting increased demand in electronics cooling and renewable energy sectors. The effectiveness of a heat pipe relies on the working fluid, the geometry of the pipe, and the operational environment. It is vital to consider these factors when selecting a heat pipe for your application.
**Tip:** When choosing a heat pipe, assess the specific heat transfer requirements and environmental conditions. For high-temperature applications, select fluids with higher boiling points.
Manufacturers often emphasize performance metrics, yet real-world applications may unveil limitations. For example, pressure drops can impact fluid movement, leading to inefficient heat transfer.
**Tip:** Always validate the theoretical performance data against actual testing in your specific application to ensure reliability.
How to Choose the Right Heat Pipe for Your Application?
| Parameter | Description | Typical Range | Application Suitability |
| Operating Temperature | Range of temperatures the heat pipe can operate efficiently | -50°C to 200°C | Electronics cooling, HVAC systems |
| Heat Transport Capacity | Maximum heat transfer that the heat pipe can handle | 5W to 300W | High-performance electronics, laptops |
| Length | Overall length of the heat pipe | 50mm to 400mm | Compact spaces, portable devices |
| Diameter | Outer diameter of the heat pipe | 6mm to 25mm | Standard applications, custom solutions |
| Working Fluid | Liquid used inside the heat pipe for heat transfer | Water, acetone, ammonia | Varied applications based on temperature |
Types of Heat Pipes: Choosing the Right Design for Your Needs
When selecting the right heat pipe for your application, understanding different types is crucial. Heat pipes come in various designs to suit diverse needs. The most common types include rigid, flexible, and capillary heat pipes. Rigid pipes are ideal for stable applications. Flexible pipes can adapt to various configurations. Capillary pipes efficiently transfer heat over long distances.
Consider the operational environment. High temperatures might require specialized materials. If the application is for electronics, low thermal resistance should be a priority. Evaluate the working fluid too; different fluids perform better under certain conditions.
Tips: Always consider the maximum heat transfer capacity. It's vital for maintaining performance. Test your design under real-world conditions. Adjust the parameters as needed. Be prepared to revisit your choice; ideal conditions may change. Keep documentation thorough; it helps in future assessments.
Key Factors to Consider When Selecting a Heat Pipe
Choosing the right heat pipe involves several key factors that directly impact performance. The working fluid inside the heat pipe must match the desired temperature range. Common fluids include water, ammonia, and methanol. Each has unique thermal properties. For example, water works well for moderate temperatures but can freeze in low settings.
Consider the heat pipe's material as well. Copper and aluminum are popular choices for their excellent thermal conductivity. However, they also have different weight and cost implications. The external environment plays a crucial role too. If you're using a heat pipe in a vacuum or high humidity, select a pipe designed for those conditions.
Another important factor is the orientation of the heat pipe. While many can function in various positions, some designs optimize performance in specific orientations. This detail can affect efficiency. Reflecting on all these elements is essential, as overlooking one can lead to insufficient heat transfer or even failure of the system. Each application is unique, so tailor your selection to its specific requirements and limitations.
Evaluating Thermal Performance: Conductance and Capacity
When selecting a heat pipe, evaluating thermal performance is essential. Conductance and capacity are two key factors that dictate efficiency. Conductance measures how effectively heat transfers through the pipe. A higher conductance means better heat flow. It’s crucial to identify the specific requirements of your application. If the operating temperature fluctuates, ensure the heat pipe offers stable conductance across varying conditions.
Capacity, on the other hand, refers to the amount of heat a heat pipe can handle. This is vital in high-load situations. Look for a heat pipe designed to accommodate peak loads without overheating. Consider not only the worst-case scenario but also average operational conditions. An imbalance in capacity can lead to underperformance or even failure.
Balancing conductance and capacity requires careful analysis. Some designs may excel in one area while lacking in another. Reflect on how these specifications align with your application’s needs. Adjustments in design could offer improvements, but be wary of complexity. Simplicity often yields reliable performance. Choosing the right heat pipe is more than just specifications; it’s about understanding the unique demands of your application.
Material Selection: How It Affects Heat Pipe Efficiency
Material selection is crucial in determining heat pipe efficiency. Various materials have different thermal conductivities and corrosion resistances, significantly impacting performance. According to a recent industry report, copper heat pipes can efficiently manage heat transfer due to their high thermal conductivity, which is approximately 400 W/m·K. In contrast, aluminum, with a thermal conductivity of around 205 W/m·K, may not be suitable for high-performance applications.
Corrosion resistance should also be considered. Certain environments may lead to rapid degradation of materials. For example, copper heat pipes may suffer in ammonia-rich environments, while stainless steel offers better resistance. A survey of over 200 industry applications indicated that misjudging material selection can result in a 20% decrease in heat pipe efficiency. These considerations are vital when aiming for optimal thermal management in electronics or HVAC systems.
Additionally, the working fluid is equally important. The interaction between the material and the fluid can affect boiling and condensation processes. If not paired correctly, thermal performance can suffer, leading to insufficient cooling. For example, water is preferred in many applications, but in extreme conditions, fluids like ammonia or methanol may be necessary. Balancing material and fluid choices is essential for achieving the best heat pipe performance.
Applications of Heat Pipes: Matching Technology to Use Cases
Heat pipes play a crucial role in thermal management across various industries. A study by the Thermal Analysis Society indicates that proper selection of heat pipes can improve thermal efficiency by up to 30%. In electronics, for example, heat pipes are commonly used in laptops and gaming consoles to dissipate heat effectively. Their ability to transmit heat over distances without significant temperature loss makes them ideal for compact designs.
In aerospace applications, heat pipes are vital for maintaining optimal temperatures in spacecraft. NASA’s evaluations show that using heat pipes can enhance thermal performance by 40% compared to conventional cooling methods. Selecting the right type of heat pipe often depends on factors such as working fluid, orientation, and operational temperature range. For instance, a sintered wick heat pipe performs well under variable orientations.
Manufacturers must understand specific requirements for different use cases. While some applications demand lightweight and compact solutions, others prioritize durability under extreme conditions. Misalignment in needs can lead to inefficiencies, highlighting the importance of thorough analysis in the selection process. Despite advancements, challenges like manufacturing variability still exist, urging continuous improvement in heat pipe technology.

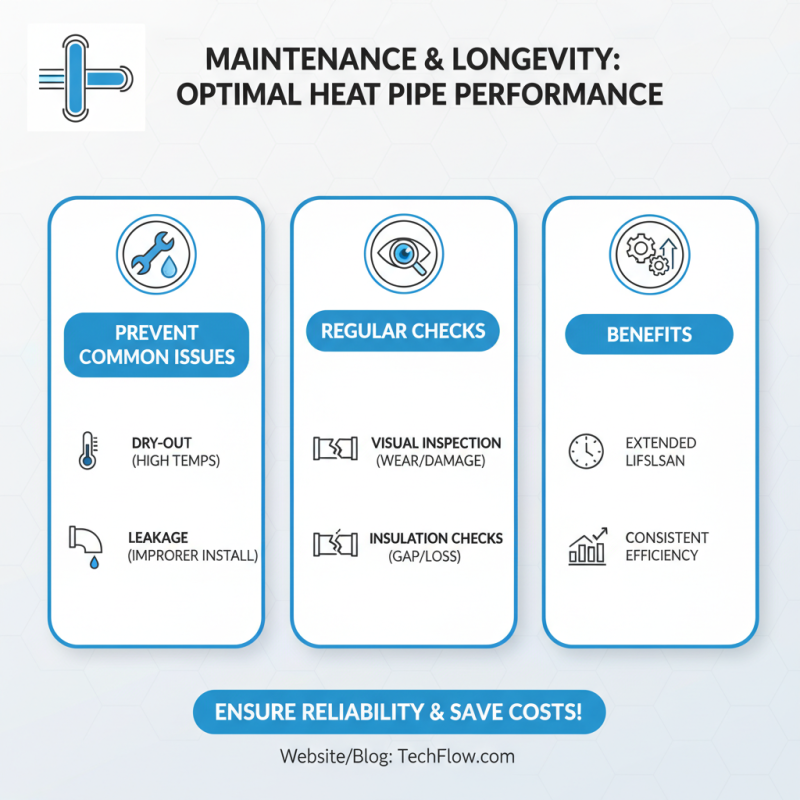

Maintenance and Longevity: Ensuring Optimal Performance Over Time
Proper maintenance is essential for heat pipes to function effectively over time. Regular checks can prevent common issues like dry-out or leakage. These problems arise from high temperatures or improper installation. Visual inspections can identify signs of wear or damage on the exterior. Checking insulation is also crucial, as gaps can lead to performance loss.
Longevity in heat pipes often depends on their operating environment. Understanding temperature fluctuations and pressure conditions is vital. Overheating can significantly reduce a heat pipe's life. It’s important to follow manufacturer guidelines regarding temperature limits. Additionally, keeping the heat pipe clean from contaminants aids in retaining its efficiency. Neglecting these factors may lead to unexpected failures and costly repairs.
In some cases, users may overlook the importance of periodic testing. Measuring thermal performance can reveal discrepancies in efficiency. This practice not only extends the lifespan but also ensures optimum operation. As environments change, periodic realignment may be needed to maintain effectiveness. Balancing all these aspects helps achieve a reliable and efficient heating system.
FAQS
: Common types include rigid, flexible, and capillary heat pipes. Each serves different applications.
High temperatures and humidity require specific designs. Choose materials that withstand your operational conditions.
The working fluid must match the temperature range. Fluids like water and ammonia have unique thermal properties.
Materials like copper and aluminum offer different thermal conductivity. Weight and cost are also important considerations.
Some heat pipes work better in specific orientations. Proper placement can enhance efficiency.
Low thermal resistance is essential for electronics. Ensure the heat pipe can manage heat effectively.
Testing under actual conditions is vital. Adjust parameters based on performance outcomes.
Keep thorough records of your design choices. It aids future evaluations and adjustments.
Yes, be prepared to reconsider your selection. Ideal conditions may change, requiring adjustments.
Ignoring a crucial element can lead to inefficiency or failure. Reflect on all factors for proper performance.
Conclusion
Heat pipes are essential components widely used in thermal management applications due to their efficient heat transfer capabilities. Understanding their basics and operating principles is crucial for selecting the appropriate heat pipe design tailored to specific needs. Factors such as thermal conductance and capacity, as well as material selection, significantly influence the heat pipe's performance and efficiency.
When choosing a heat pipe, one must evaluate its suitability for particular applications, ensuring compatibility with the intended use cases. Additionally, considering maintenance and longevity is vital to guarantee optimal performance over time. By carefully assessing these aspects, one can effectively match heat pipe technology to various requirements, achieving enhanced thermal management solutions.
